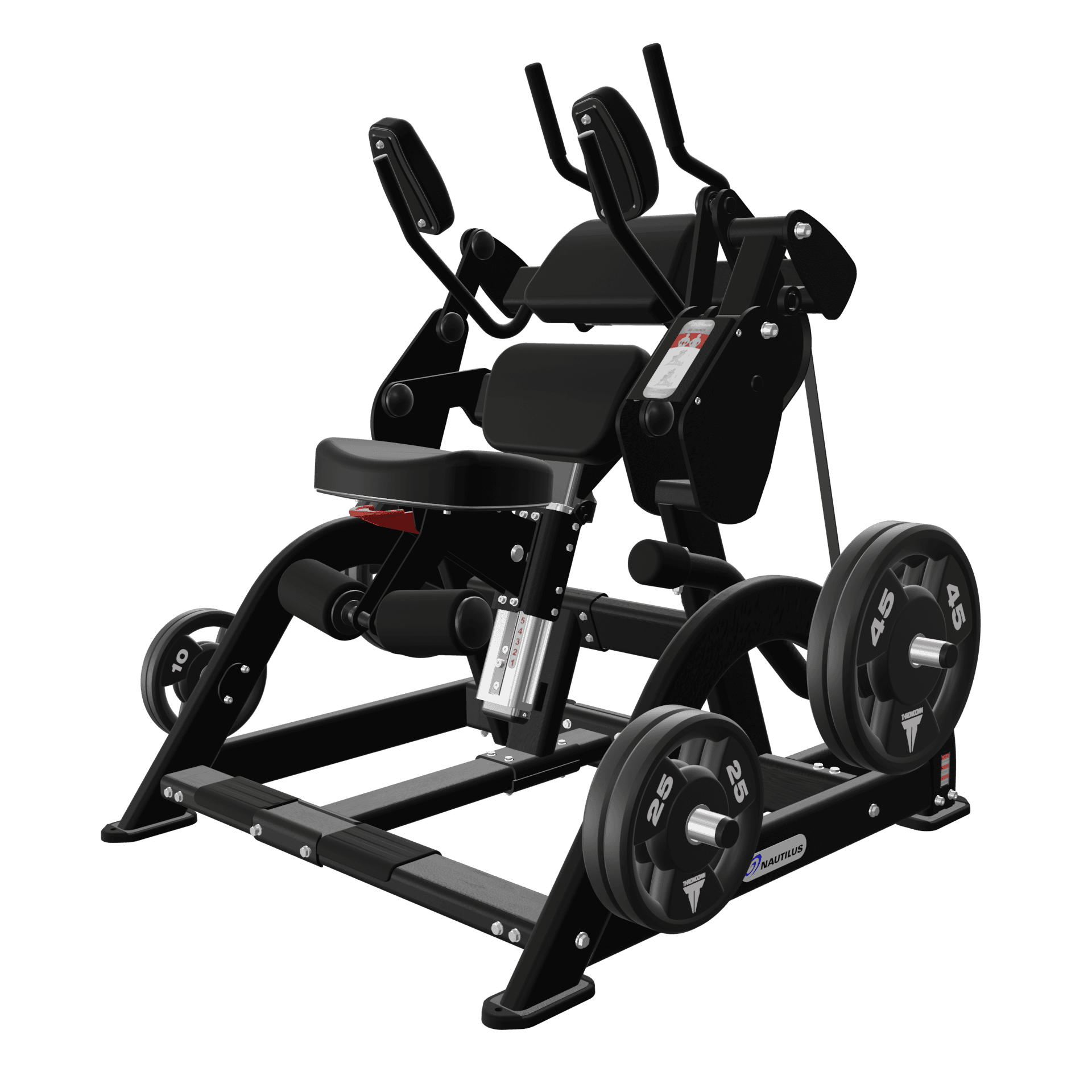

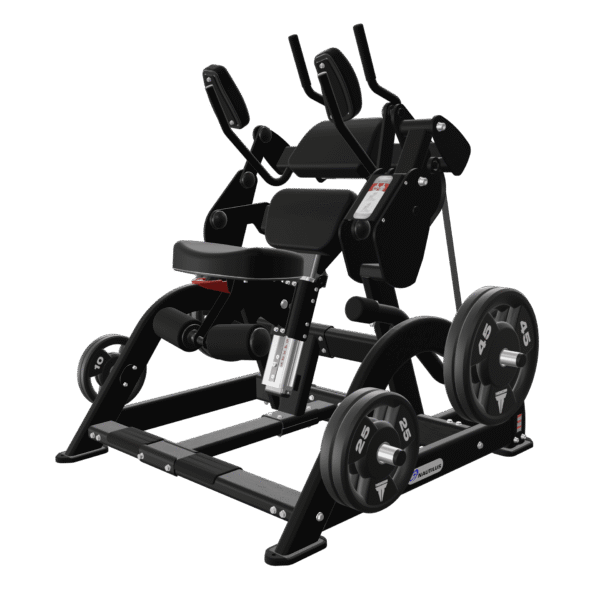

Nautilus Leverage Plate Loaded Ab Crunch

Designed to engage the core with unmatched precision and biomechanical efficiency.

The Nautilus Leverage™ Ab Crunch provides a unique plate-loaded experience engineered to optimise abdominal training. With stainless steel knurled grips, gas-assisted seat adjustments, and user-defined pre-stretch settings, it supports a tailored movement path for every user. Its standout feature — a four-bar linkage on the upper movement arm — creates a dynamic axis of rotation around the thoracic spine, delivering a highly effective, controlled crunch. Built with low load points and integrated plate storage, this machine is ideal for professional gym environments.

Key Features:

• Stainless steel knurled grips for a secure and durable hold

• Max load capacity: 123kg (270lb) per arm

• Starting resistance: 13kg (28lb) per arm

• Four-bar linkage for superior rotational movement and user feel

• Combination of upper and lower movement arms for full core engagement

• Low load points for safe and user-friendly plate loading

• Sleek design with integrated plate storage

• Weight plates sold separately

Specifications:

• Width: 1560mm (61in)

• Length: 1570mm (62in)

• Height: 1560mm (61in)

• Product Weight: 209kg (461lb)

• Shipping Weight: 277kg (611lb)

• SKU: 9NP-L5003

• Stack Weight: N/A

• Frame Colour Options: 19, 25, 26, and 60*

Warranty:

• Structural frame (excluding coatings): 10 years

• Major mechanical parts (guide rods, plates, bearings, etc): 5 years

• Minor mechanical components (grips, cables, switches): 1 year

• Upholstery: 6 months

• Labour: 1 year
