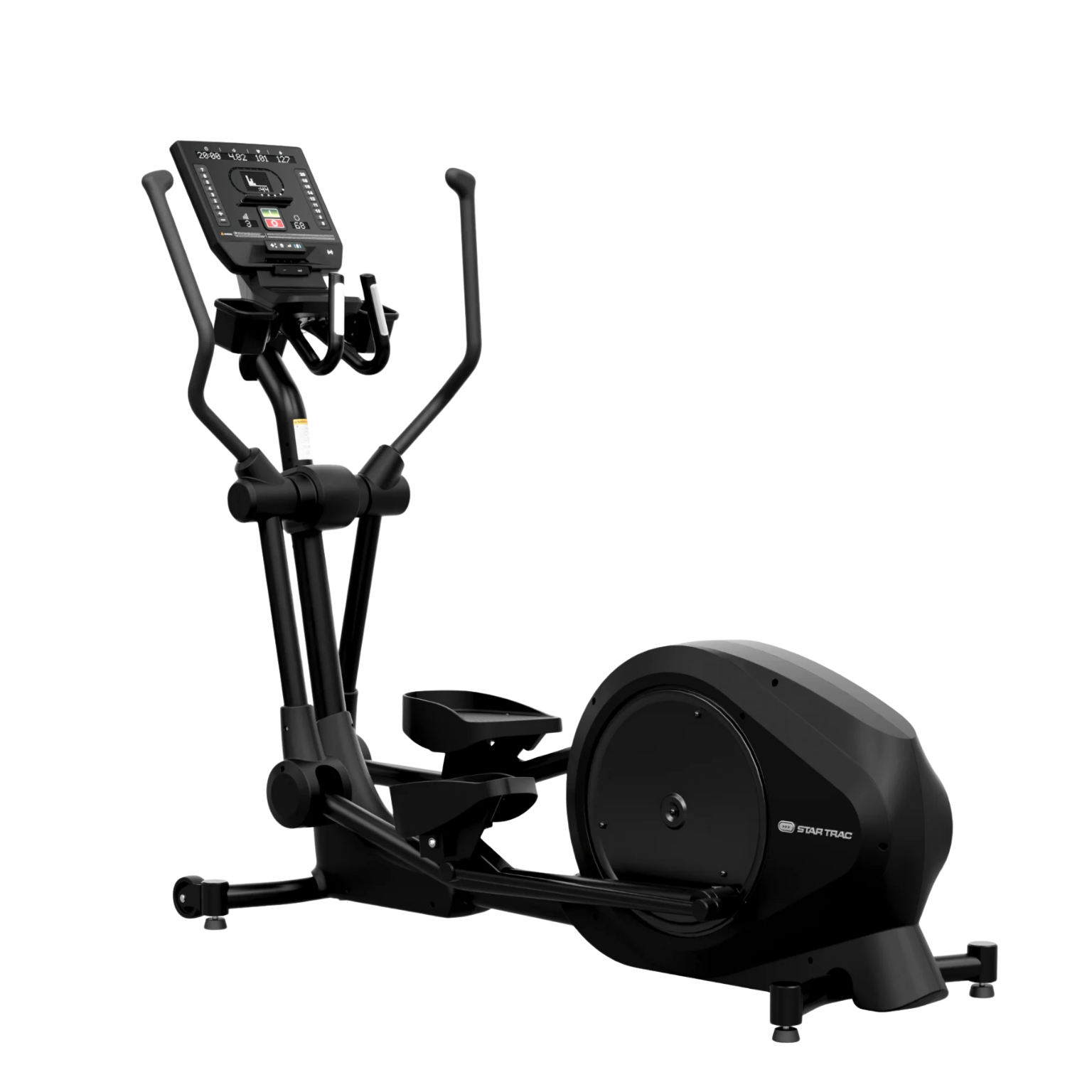

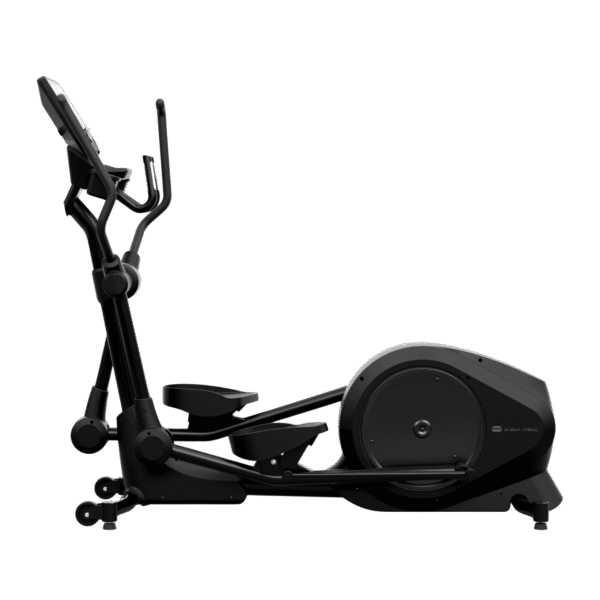

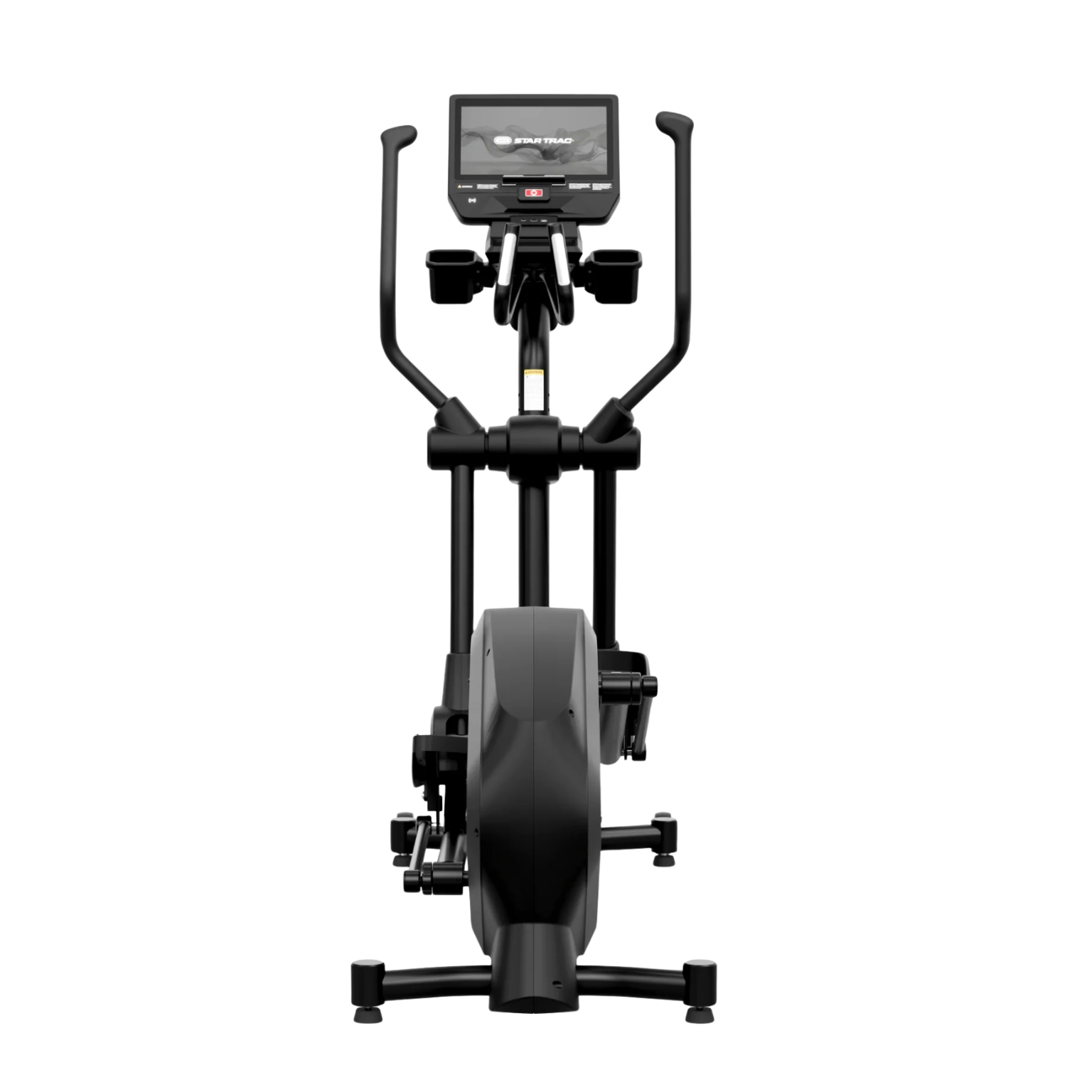

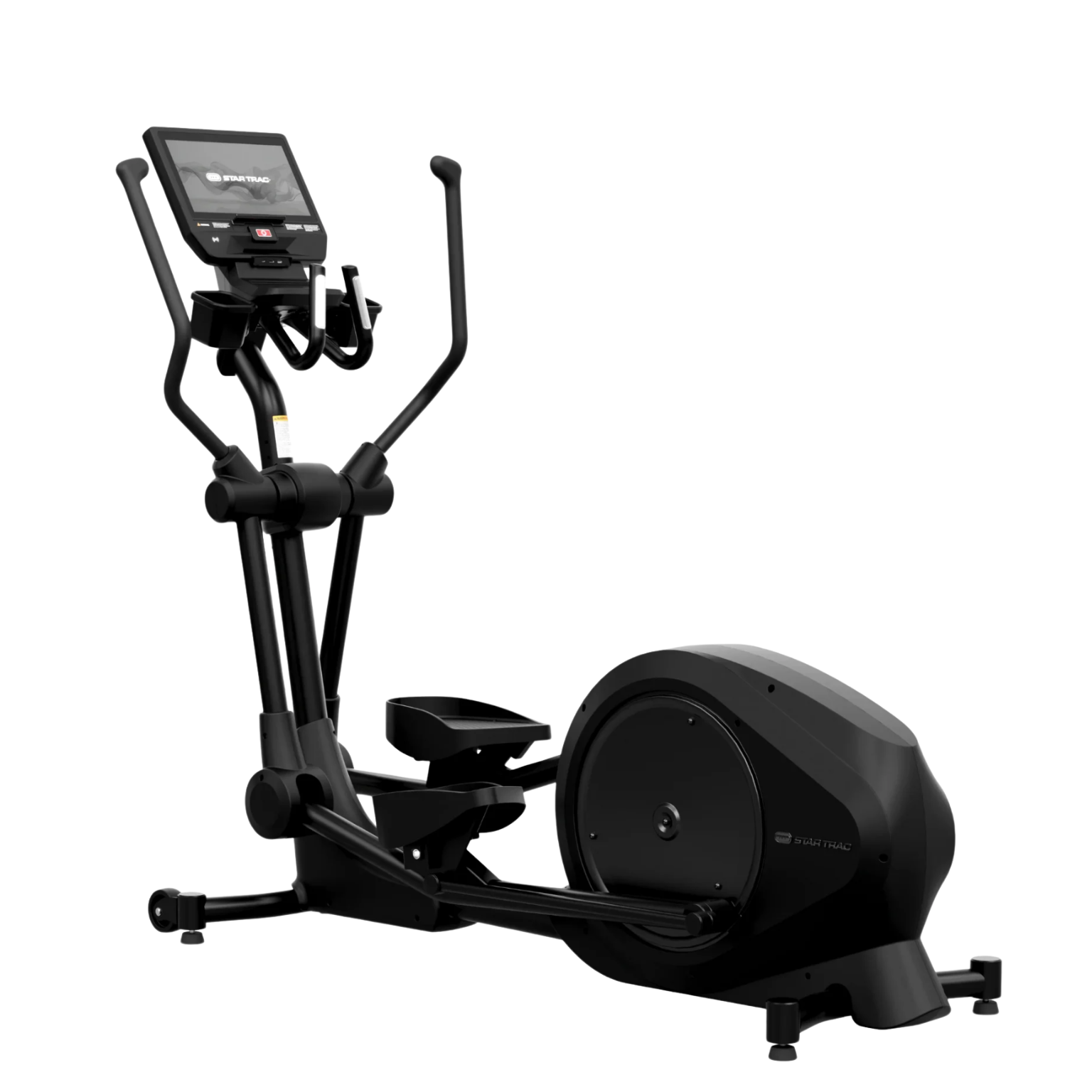

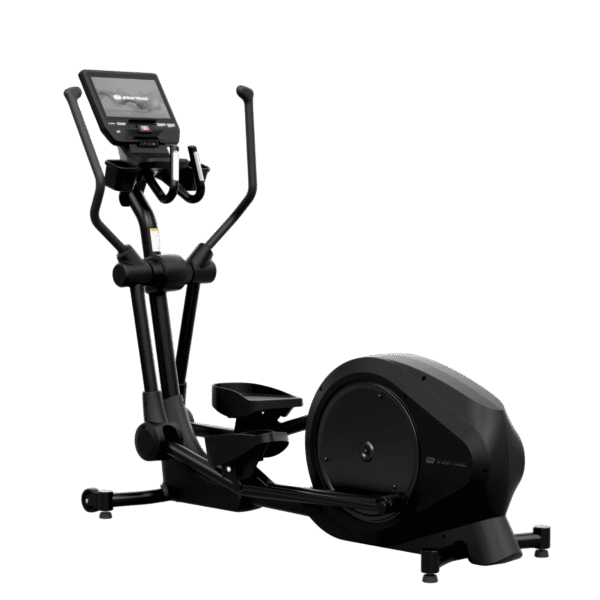

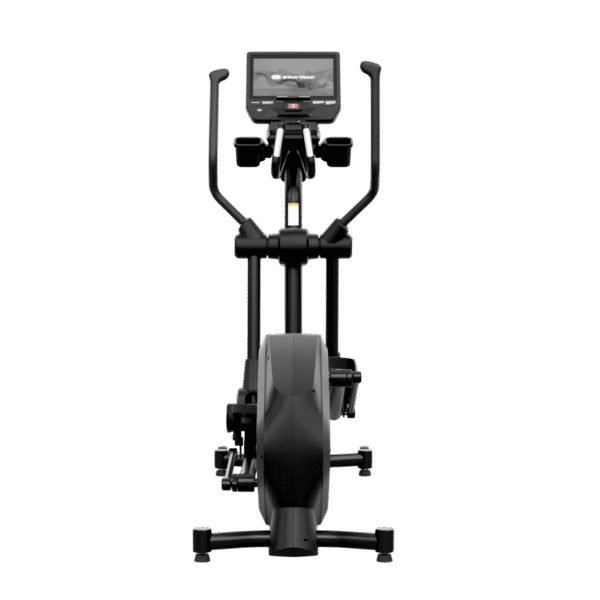

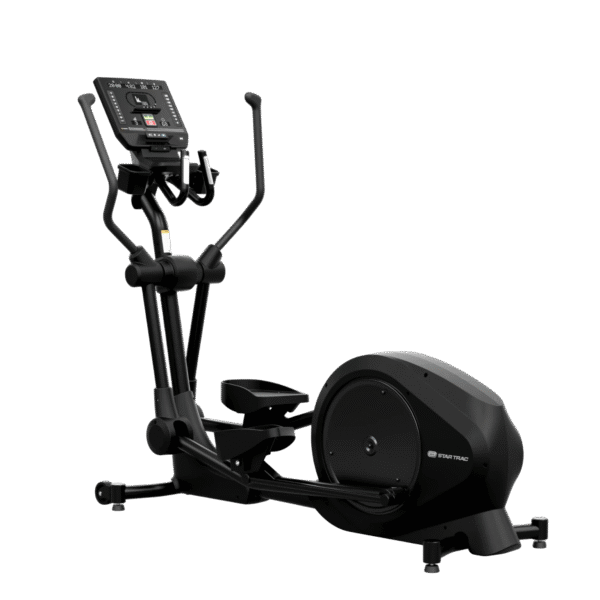

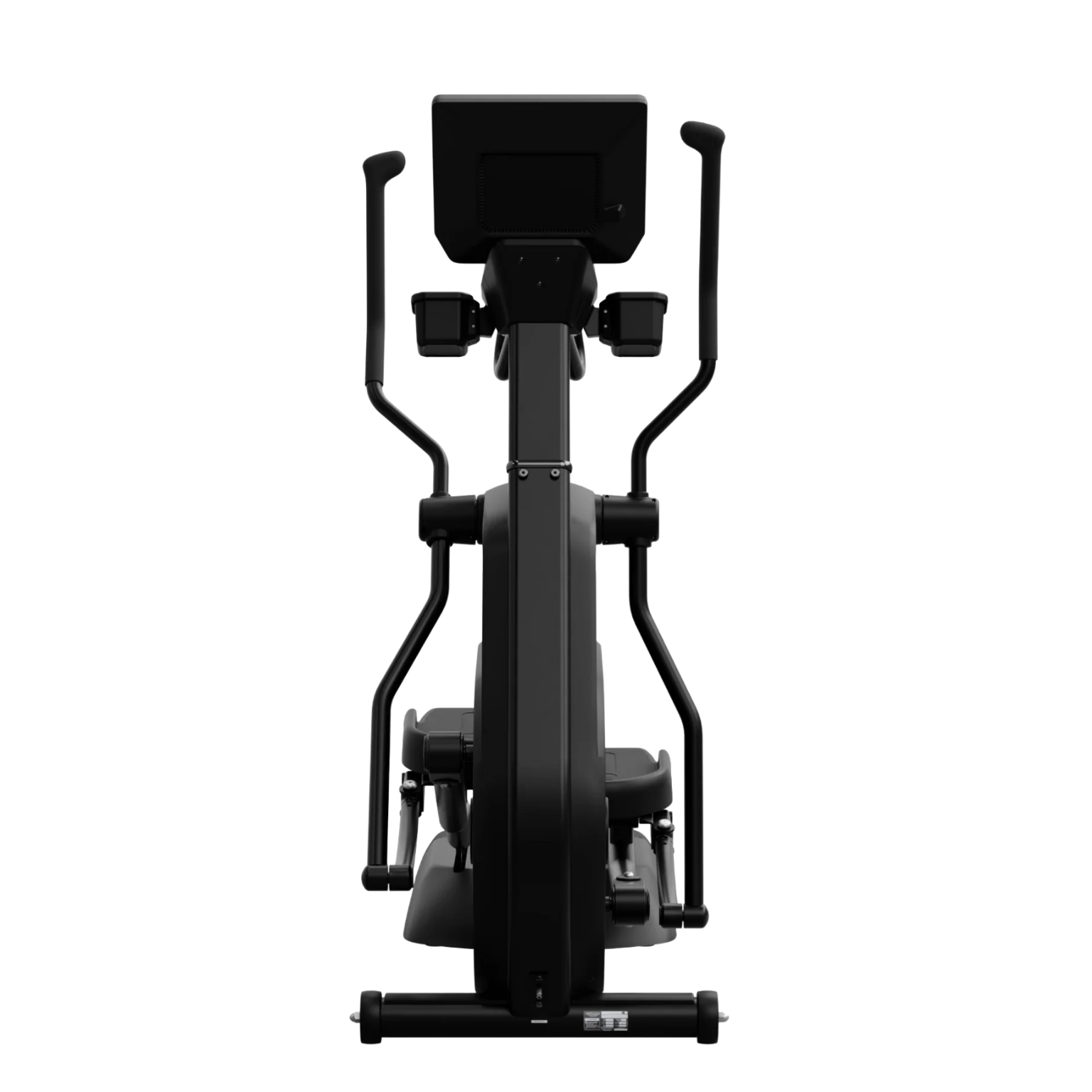

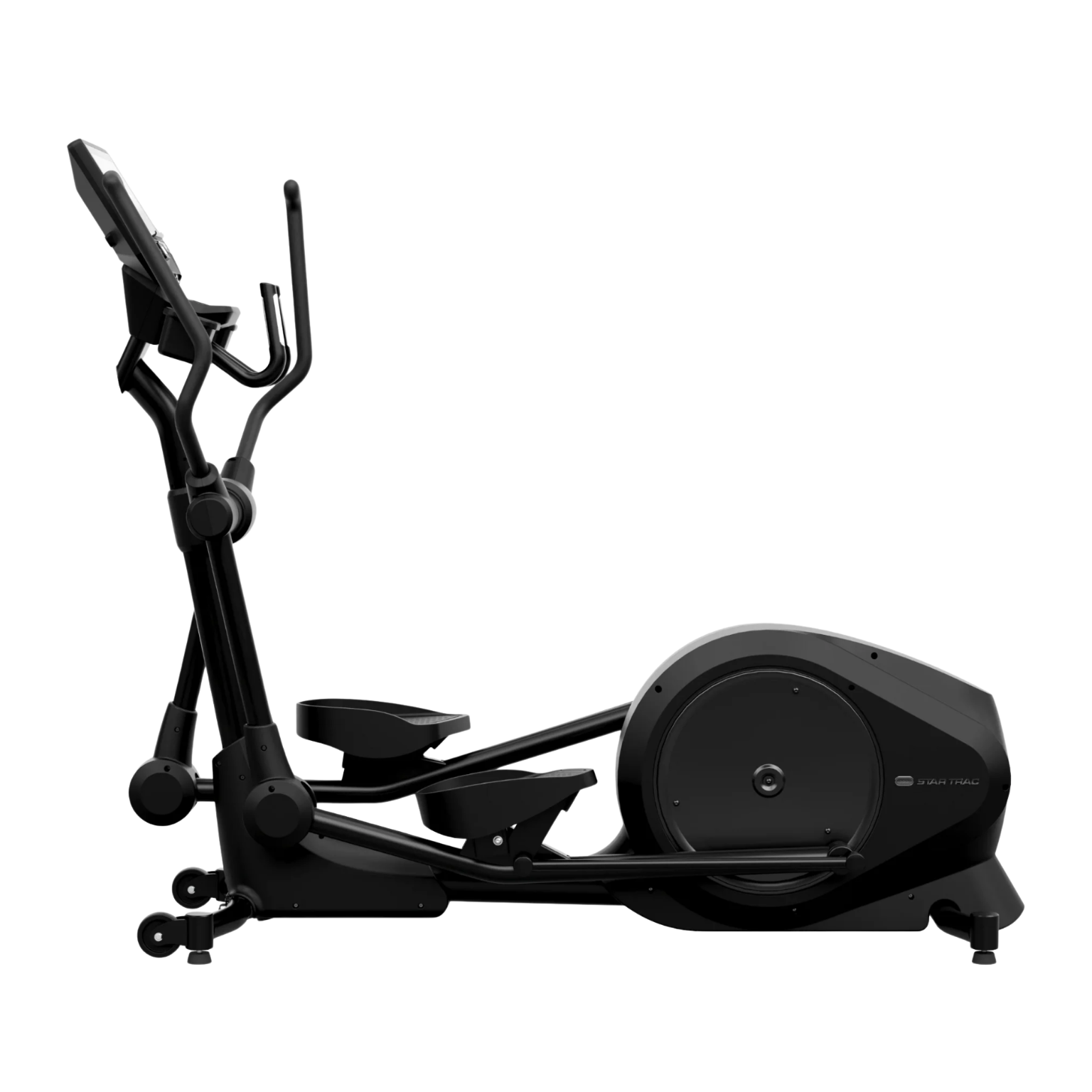

Star Trac 8 Series 8-RDE Rear Drive Elliptical

The Star Trac 8-RDE Rear Drive Elliptical is a commercial-grade cross trainer with an 18″ stride and articulating foot pedals for smooth, joint-friendly movement. With interactive LED or 16″ touchscreen display options, smart connectivity, and premium comfort features, it’s built for professional training environments.

Price range: £4,195.00 through £5,710.00

If you need help, contact us on 07713 511195 or sales@justfitequipment.co.uk

Additional information

Display Options

Apex LED Display, Apex HD 24" Touchscreen Display

The Star Trac 8 Series 8-RDE Rear Drive Elliptical is designed to elevate the cardio experience in commercial gyms, health clubs, and fitness facilities. With its rear drive system, articulating foot pedals, and 18” fixed stride, this elliptical offers a natural, fluid motion that reduces joint stress while promoting proper body alignment—perfect for warm-ups, endurance sessions, or high-intensity intervals.

Built for both performance and accessibility, the 8-RDE features a low 28 cm step-up height, multi-grip movement arms, and intuitive onboard controls to ensure a safe and effective workout for users of all abilities.


Interactive Display Options:

  • Choose between the Apex LED Display or the immersive 16” HD Touchscreen, both offering intuitive navigation, onboard workouts, real-time data tracking, and entertainment apps like RunTV and PlutoTV.

  • OpenHub display options (LCD, 10”, or 15”) available for expanded media compatibility and facility integration.


Smart Connectivity:

  • Tap-to-Pair NFC: Instantly sync Apple and Samsung smartwatches for real-time fitness tracking.

  • Bluetooth-Enabled: Connect with popular fitness apps for performance monitoring and progress tracking.


Performance Features:

  • 18″ Fixed Stride with Articulating Foot Pads: Promotes natural motion with reduced joint impact

  • 20 Resistance Levels: Adjustable intensity for all user levels and workout styles

  • Heart Rate Monitoring: Contact and telemetry-based HR tracking, Bluetooth-compatible

  • Self-Generating Power: LCD version requires no external power, touchscreen models use a 12V/5A power supply


Premium Comfort & Convenience:

  • Wireless Phone Charging

  • Cooling Fan

  • USB Port

  • Dual Bottle Holders

  • Multiple Accessory Holders & Tablet Shelf


Technical Specifications:

  • Drive System: Rear drive with alternator resistance

  • Stride Type: Fixed

  • Stride Length: 46 cm (18”)

  • Step-Up Height: 28 cm (11”)

  • Resistance Levels: 20

  • Heart Rate System: Contact and telemetry (Bluetooth compatible)

  • Display Options: LED, 16″ Touchscreen, LCD, 10” or 15” OpenHub

  • Power Requirements:

    • LCD: Self-powered

    • Touchscreen/PVS: 12V / 5A power supply

  • Max User Weight: 181 kg (400 lbs)

  • Start-up Watts: 20


Frame & Build Quality:

  • Frame Material: Powder-coated steel

  • Standard Colour: Black (custom colours available with approval)

  • Product Weight: 136 kg

  • Dimensions (Assembled): 219 cm (L) x 91 cm (W) x 185 cm (H)

  • Shipping Dimensions: 213 cm x 75 cm x 122 cm

  • Shipping Weight: 172 kg

Warranty Commercial Only:

Warranty 10 years on frame, 2 years parts and labor
