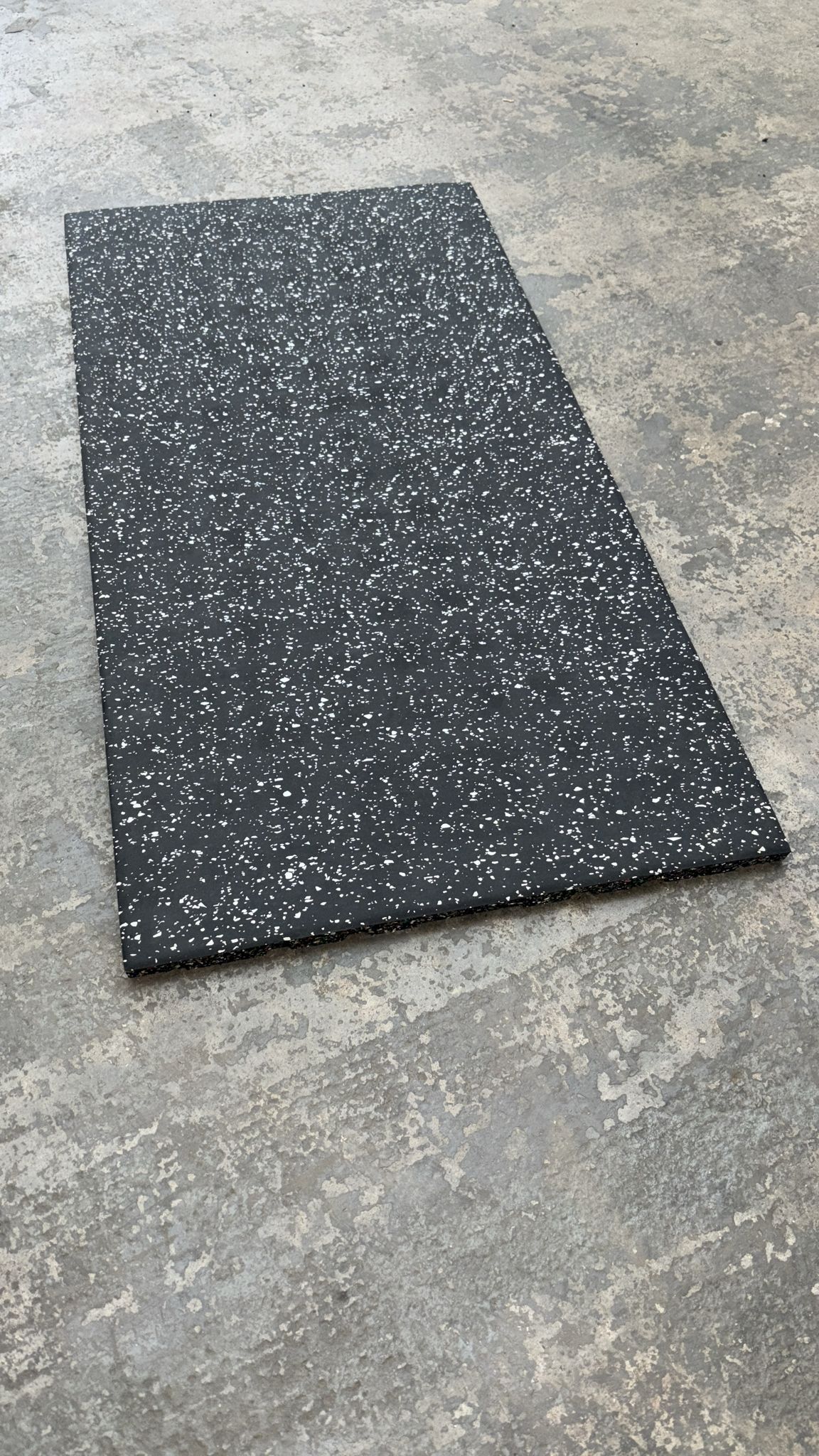

X Connect Tiles – Grey

X Connect Tiles – 20mm Light Grey Interlocking Rubber Gym Flooring

Designed for commercial gym environments, the X Connect Tiles offer premium impact protection, noise reduction, and a clean, professional finish. Each tile features a dual-layer construction, with a high-density rubber surface and a recycled rubber base — delivering both performance and durability.

Product Features
✔️ High Impact Resistance – Absorbs heavy drops from weights and dumbbells
✔️ Shock & Sound Absorption – Ideal for busy training areas and weightlifting zones
✔️ Durable Surface – Made from high-density rubber roll flooring (70% EPDM / 30% SBR)
✔️ Recycled Rubber Base – Environmentally conscious construction with long-lasting performance
✔️ Clean Finish – Simple installation with hidden connectors and almost invisible joins
✔️ Interlocking System – 7 plastic connectors included per tile for secure fit
✔️ Commercial Grade – Designed for gyms, studios, schools, and sports facilities

Specifications
• Thickness: 20mm
• Sizes Available: 1m x 1m and 1m x 0.5m
• Colour: Grey
• Top Layer: High-density rubber roll flooring (EPDM + SBR)
• Base Layer: Recycled rubber and EPDM
• Bulk Density (Top): Approx. 1,400 kg/m³
• Bulk Density (Base): Approx. 1,000 kg/m³
• Shock Absorption: 61% (EN14808)
• Vertical Deformation: 5.0mm (EN14809)
• Fire Rating: Efl Standard
• Warranty: 5 Years

Installation
The tiles are quick and easy to install using the included plastic connectors, which are slotted underneath for a hidden interlocking system. Tiles can be trimmed to fit with a utility knife. A level, dry, and firm sub-floor is essential for proper installation. Refer to the video on this product page for guidance.

Cleaning & Maintenance
Maintain tiles using a standard vacuum or damp mop. For deeper cleaning, use a cleaning machine with appropriate rubber floor pads. Only use pH-neutral cleaners; avoid solvents. Newly laid tiles may benefit from a degreasing clean during the first few weeks.

Optional Edge & Corner Pieces
For a seamless and safe edge finish, optional edge pieces (0.5m x 15cm) and corner pieces are available to complement the X Connect Tile system. These additions provide smooth transitions and are ideal for exposed tile borders in open floor plans, walkways, or standalone zones.

For X Connect Corners – Buy Them Here

For x Connect Edges – Buy Them Here
